Build instructions

This tool needs to be sturdy and rigid so it wouldn't break under preassure during assembly. I would also recommend to monitor your print every once in a while to make sure you don't have issues with overextrusion.

Build process

Files

1. wagon-wheel-assembly.zip

Part list

• 1 x body
• 1 x handle
• 1 x lid
• 1 x piston

Important notes

• PETG recommended
• pay close attention to adhesion
• 100% infill
• use brim for the body
• no rupports necessary
• check your print every once in a while for overextrusion or separation from the build plate.

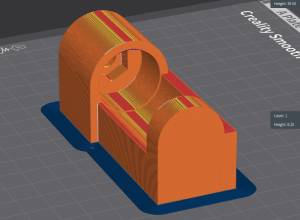

Body slicing

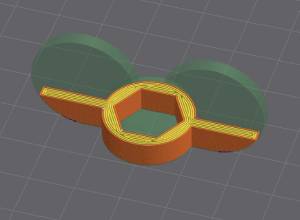

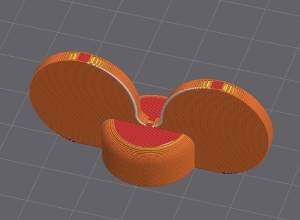

Handle slicing

Handle slicing

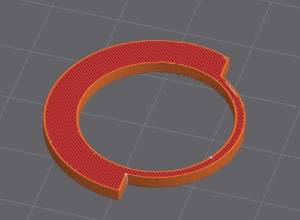

Lid slicing

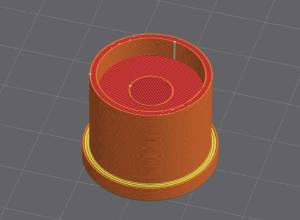

Piston slicing

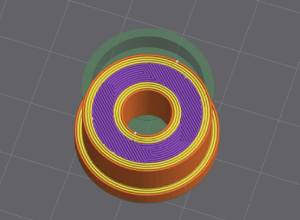

Piston slicing

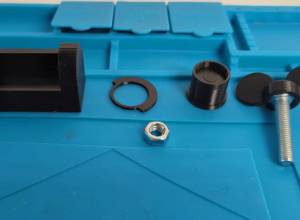

Assembly

Assembly

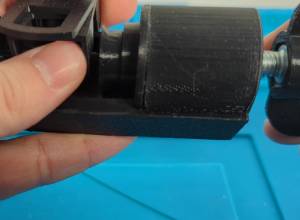

Usage
