Build instructions

If you want you can skip the part with wiring the wagon. However I would still recommend you do this part as it will open up a range of possibilities later on.

Instructional videos will show a recommendation for slicing parts. But you can also find a better way while you build your own.

For a full reference of necessary materials and tools, go to Tools & Materials.

Chassis

Files

1. chassis.zip

Part list

• 1 x chassis

Important notes

• PLA recommended
• do not place more supports than necessary
• no brim

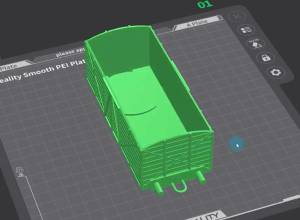

Slice the wagon chassis

Roof

Files

1. roof.zip

Part list

• 1 x roof

Important notes

• PLA recommended
• print it sideways
• no supports
• use brim

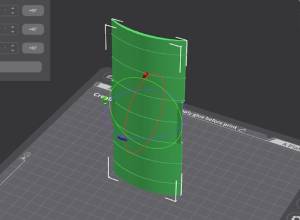

Slice the wagon roof

General parts

Files

1. general-parts.zip

Part list

• 4 x bumper-cap
• 2 x connector-body
• 2 x connector-cap
• 8 x wagon-wheel
• 2 x wagon-wheel-base
• 2 x wagon-wheel-carrier

Important notes

• PETG recommended
• pay attention that all parts are perfectly level with the print bed while slicing
• you don't have to print all general parts at once
• connector body should be placed on the side
• avoid brim
• supports only on connectors

Slice general parts

Axiles

Files

1. axiles.zip

Part list

• 4 x wagon-wheel-axile
• 4 x wagon-wheel-axile-sleve

Important notes

• PETG recommended
• pay attention that axiles are perfectly level with the print bed in your slicer
• PETG recommended
• no supports
• no brim

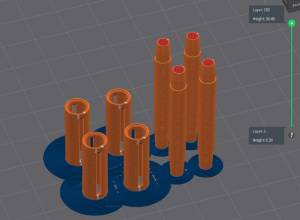

Slice axiles

Assembly

Wheel carriage assembly

Connector assembly

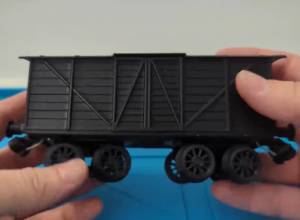

Final wagon assembly
