Build instructions

If you want you can skip the part with wiring and illumintation of the wagon. However I would still recommend you do this part as it will open up a range of possibilities later on.

Instructional videos will show a recommendation for slicing parts. But you can also find a better way while you build your own.

If you have never worked with soldering, there are great videos on YouTube to show you the basics. That should be just enough to acquire a skill to get this done.
There are also dedicated videos to wiring here so you should be covered.

For a full reference of necessary materials and tools, go to Tools & Materials.

Chassis

Files

1. chassis.zip

Part list

• 1 x chassis

Important notes

• PLA recommended
• do not place more supports than necessary
• no brim

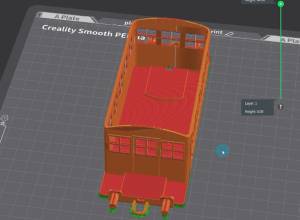

Slice the wagon chassis

Roof

Files

1. roof.zip

Part list

• 1 x roof
• 4 x roof-vent

Important notes

• PLA recommended
• print it sideways
• no supports
• use brim

Slice the wagon roof

Windows

Files

1. windows.zip

Part list

• 2 x windows

Important notes

• White material recommended
• no brim

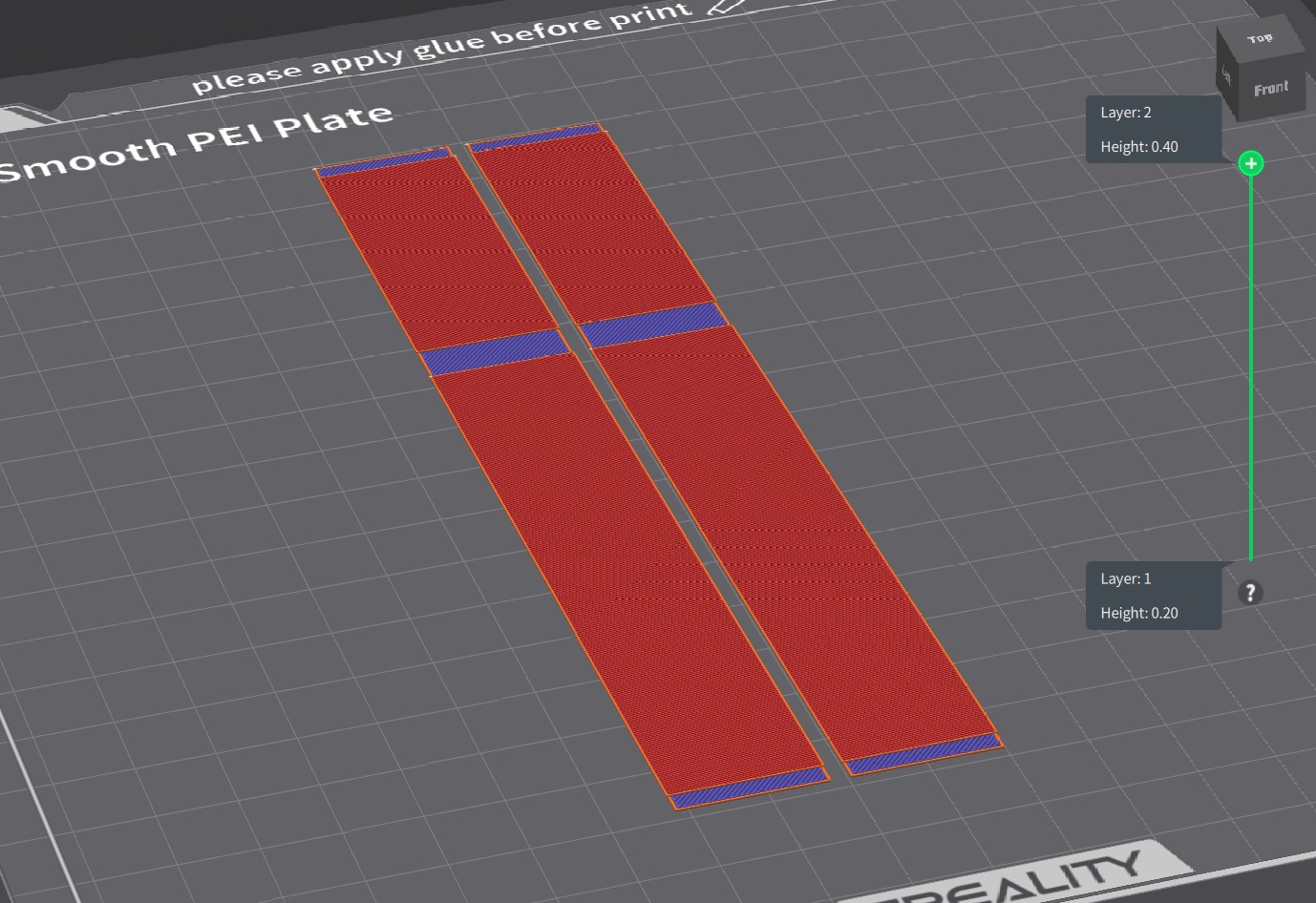

Slice the windows

Fence

Files

1. fence.zip

Part list

• 2 x fence

Important notes

• PLA recommended
• pay close attention to orientation
• do not place more supports than necessary
• no brim

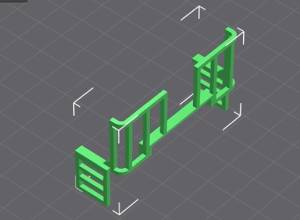

Slice the fence

General parts

Files

1. general-parts.zip

Part list

• 4 x bumper-cap
• 2 x connector-body
• 2 x connector-cap
• 8 x wagon-wheel
• 2 x wagon-wheel-base
• 2 x wagon-wheel-carrier

Important notes

• PETG recommended
• pay attention that all parts are perfectly level with the print bed while slicing
• you don't have to print all general parts at once
• connector body should be placed on the side
• avoid brim
• supports only on connectors

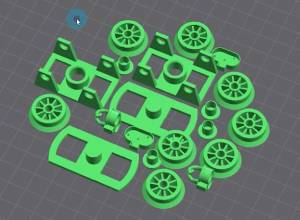

Slice general parts

Axiles

Files

1. axiles.zip

Part list

• 4 x wagon-wheel-axile
• 4 x wagon-wheel-axile-sleve

Important notes

• PETG recommended
• pay attention that axiles are perfectly level with the print bed in your slicer
• PETG recommended
• no supports
• no brim

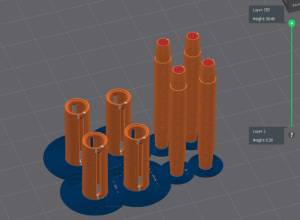

Slice axiles

Assembly

Wheel carriage assembly

Connector assembly

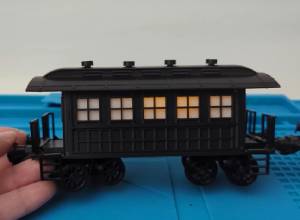

Final wagon assembly
