Straight Track
This item is free
Suggested material:PETG
Number of parts:1 - 3
Discord tag:track-straight

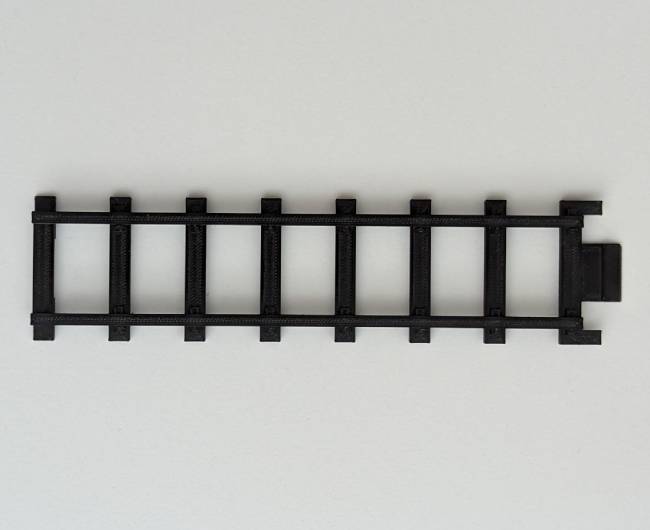

Straight Track
And off we go...
The most common track. You will soon come to realize you want to have a lot of these to cover great distances :)

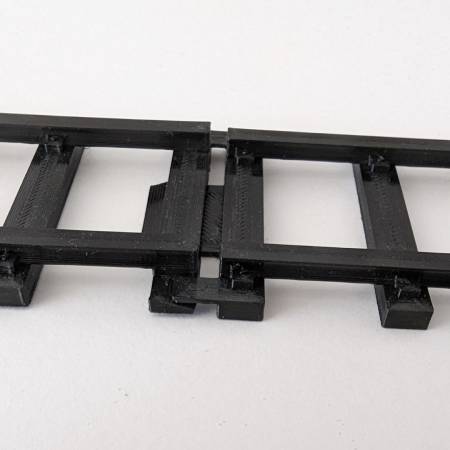

Click!
Features the Loligrad (TM) innovative snapping connector. Easy to connect and easy to disconnect.
Think about the environment
I have done my best to make the tracks durable and flexible. But nevertheless if things go south, a part of the connector breaks or the track breaks, you can allways try to repair it rather than throw it away and print a new one. Be creative and salvage, don't waste. At least that's what real railroad engineers would do :)
Build instructions
I would recommend that you print these in batches of 3pcs. The length of one piece is 205mm, so if your printer cannot achieve that, you might have to print two or even one per batch diagonally. Very small amount of supports is necessary here, so keep a close eye on tutorials.
Build process
Files
Important notes
- PETG recommended
- pay close attention to adhesion on the build plate - make sure you are not printing over some logos or anything else on your buildplate
- do not place more supports than necessary
- no brim
The tutorial below is the same for plain tracks (straight, curved etc..)
Slice the tracks
